Moving from AI Sketches to Finished CNC Parts
Transfigure AI utilizes the Tormach xsTECH Pro to convert AI-generated, sketch-based CAD models directly into finished aluminum parts, demonstrating a streamlined workflow. This approach bridges the gap between conceptual design and physical manufacturing, helping manufacturers reduce time spent on manual 3D modeling.
Artificial intelligence (AI) is rapidly changing how products are designed, but bringing those digital concepts into the physical world still requires the right manufacturing equipment and workflow. For Transfigure AI, a startup developing software that converts sketches and drawings into production-ready CAD models, the Tormach xsTECH Pro has become an important bridge between AI-generated designs and real-world manufacturing.
The company uses the xsTECH Pro to machine parts created through its AI platform, demonstrating how manufacturers can move more efficiently from concept to finished part. By combining AI-generated CAD models with accessible CNC machining, Transfigure AI is helping engineers and manufacturers explore new ways to accelerate product development.
"Our goal is to help people create physical products faster," said Bobby Ng, founder of Transfigure AI. "The xsTECH Pro allows us to show the entire process, from an idea and a drawing to an actual manufactured part."
Bridging the Gap Between Design and Manufacturing
Ng founded Transfigure AI after more than two decades designing products and systems for companies including Honda, Tesla, Zoox, Archer and Range Energy. Throughout his engineering career, he repeatedly encountered the same bottleneck: valuable time spent converting sketches and drawings into CAD models before manufacturing could even begin.
The challenge is especially familiar to machine shops, which often receive RFQs accompanied only by 2D drawings. Before a quote can be generated, or a part can be machined, someone must first recreate the design in CAD. For many shops, this manual recreation process slows quoting, extends lead times and creates unnecessary engineering work before production can begin.
"The number one pain point we heard from machine shops is that they don't have time to recreate every part from a drawing," said Ng. "They focus on the work that already has a 3D model attached to it."
Transfigure AI was created to help eliminate that step. Its software converts sketches, drawings and other visual inputs into usable 3D CAD files, enabling engineers and manufacturers to move more quickly from concept to production. The company's long-term vision is to dramatically reduce the time required to bring physical products to market by allowing engineers to spend less time on repetitive CAD work and more time solving design challenges.
Selecting the Right Manufacturing Platform
When validating and demonstrating its technology, the company selected the Tormach xsTech Pro desktop router to machine the aluminum parts for its AI workflow.
Since the team focuses on helping users move from concept to manufacturable parts, they required an approachable and reliable machine with a short learning curve. Ng noted that the router is capable and user-friendly, adding that customer support videos and forum information made the system easy to adopt.
Access to these support resources, training content, and the user community allowed the startup to maintain its focus on product development.
From AI-Generated CAD to Finished Parts
Today, Transfigure AI uses the xsTECH Pro to manufacture sample parts created through its AI workflow.

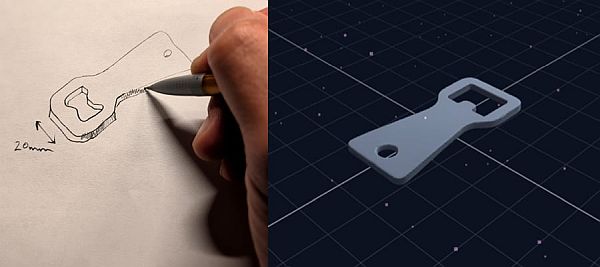

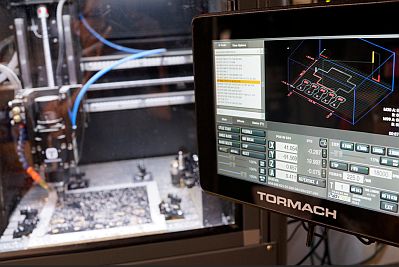

The process begins with a sketch, drawing or image that is converted into a 3D CAD model using Transfigure AI's software. The file is then imported into Fusion, programmed for machining, processed through Tormach's PathPilot® control software and manufactured on the xsTECH Pro.

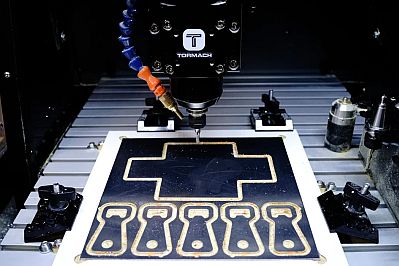

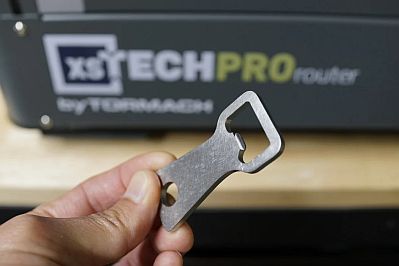

The company currently uses the machine to produce thin-gauge aluminum parts, including demonstration components that showcase how AI-generated designs can move seamlessly into production.
For Ng, creating the CAD file is only part of the story.
"Nobody stops at just a file on a screen," he said. "You gotta make the part. That's the end goal."
The xsTECH Pro enables Transfigure AI to demonstrate that AI-generated designs are not simply digital concepts but can become real, manufacturable products. The machine plays a critical role in validating the company's technology and helping customers visualize how AI can fit into existing manufacturing workflows.
As AI continues to reshape engineering and manufacturing, Transfigure AI sees significant opportunities to help companies reduce time spent on repetitive CAD work and accelerate the path from idea to production.
For the company, the xsTECH Pro serves as an important link between AI-powered design and real-world manufacturing, allowing customers to see how quickly ideas can move from sketch to finished part.
