Hybrid CNC Bed Mill Bridges the Gap Between Manual and Automated Machining

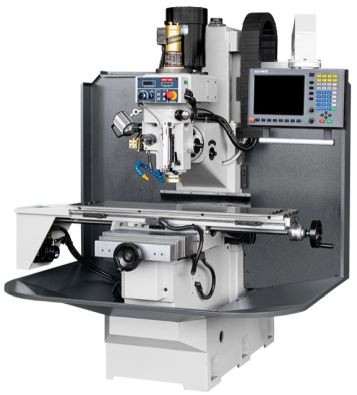

Finding the right balance between automated efficiency and manual control is a constant challenge for modern factories. Large manufacturing facilities and small shops alike often face a dilemma: invest in a rigid, fully automated CNC machining center, or stick with a flexible manual mill for quick setups, prototype development, and one-off repair jobs. The Kent USA TW-32Qi CNC bed mill directly addresses this challenge by combining automated production power with the tactile, manual workflow that experienced machinists still rely on today.

At the core of the TW-32Qi is a 7.5 HP spindle motor paired with an advanced flux-vector inverter. This configuration provides a continuous speed range from 60 to 6,000 RPM without requiring time-consuming manual gear changes.

For facilities managing high-mix production, this translates to faster cycle times when transitioning between heavy roughing cuts and high-speed surface finishing passes. Operators can select either an NST-40 or CAT-40 taper, and an intuitive on-control override knob allows real-time adjustments to spindle speeds to maximize tool life.

Underneath its digital controls, the machine retains the rugged blueprint of a classic bed mill. It features solid boxed ways on the column and saddle, a 12" x 50" table, and 32 inches of X-axis travel. High-precision, 1.25-inch diameter ground ball screws ensure stability and accuracy under heavy cutting loads. Physical metal handwheels on the X and Y axes, along with a manual quill, allow operators to drill, bore, or spot-face by hand without the need to reprogram the CNC system.

Built for demanding environments, the mill supports a 1,000-pound distributed work capacity and an 8-inch boring capacity. Practical features like automatic lubrication, an integrated coolant reservoir, and a flexible overhead-mounted control arm ensure that this machine fits seamlessly into any production line or job shop cell.

Want more information? Click below.

Kent USA
