Ceiling Mounted Robotic Trimmer/Router Eliminates Collision Constraints on Complex 3D Parts

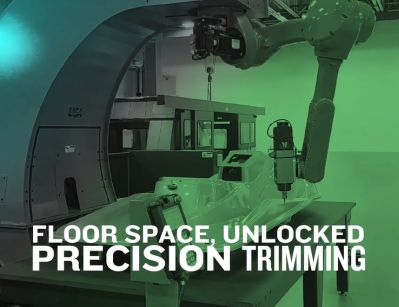

The Kawasaki Robotics Machine Tool Camp OHR (Over Head Robot) Trimmer and CNC Router represents a significant departure from conventional five-axis machining architecture. By utilizing a ceiling-mounted robotic arm instead of a rigid gantry frame, this platform offers true full-access routing and trimming for large, irregular 3D components.

The primary advantage of this overhead configuration is the complete elimination of standard collision constraints. Machine operators gain unrestricted access to deep contours, undercuts, and multi-directional geometries that frequently stall traditional five-axis setups. This makes the system particularly effective for processing oversized workpieces, such as aerospace structures, automotive interiors, composites, and molded plastics.

Operational flexibility is maintained through support for multiple table sizes, automatic tool changers, and a variety of high-horsepower spindle options tailored to specific material requirements.

Furthermore, because the OHR platform maintains direct compatibility with standard CAD/CAM software, programming teams can integrate the system into existing workflows without retraining. For industrial facilities looking to expand their large-format processing capabilities without sacrificing floor space, this overhead robotic design offers a scalable, highly adaptable alternative to conventional CNC machinery.

Want more information? Click below.

Kawasaki
