The Future of Flexible Assembly: Ford Integrates AI Vision and Collaborative Robots
Ford Motor Company has successfully automated a high-precision water shield application on continuously moving, unsynchronized assembly lines at its Cologne Electric Vehicle Center, achieving near-zero repair rates. By deploying Universal Robots cobots integrated with Inbolt 3D AI vision guidance, the system adapts to real-time vehicle positioning without requiring rigid, expensive "lift-and-locate" infrastructure.
Automating tasks on a moving assembly line is one of the toughest challenges in manufacturing engineering. Traditionally, high-precision tasks require the workpiece to be perfectly fixed. If a vehicle body is swaying or moving at variable speeds on an unsynchronized carrier, standard industrial robots cannot adapt. They expect the part to be exactly where it was programmed.
VIDEO: How Ford Automated a Moving EV Assembly Line with Vision-Guided Robots
To overcome this, engineers have historically relied on expensive "lift-and-locate" fixtures to mechanically stop and secure the vehicle. However, Ford's Cologne Electric Vehicle Center in Germany recently proved that there is a more flexible, cost-effective way to solve this problem.
The Problem: Unsynchronized Moving Carriers

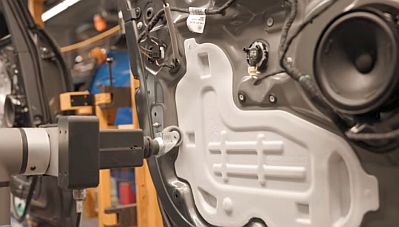

Ford needed to automate the application of water shields to vehicle bodies. This process requires continuous, precise pressure along a highly specific path to ensure a perfect weatherproof seal. Because the overhead carriers move continuously and are not perfectly synchronized, the exact position of each vehicle varies by several centimeters. Manual application often led to human fatigue and inconsistent sealing, which later required costly rework during final water-leak testing.
The Solution: 3D AI Vision Guidance

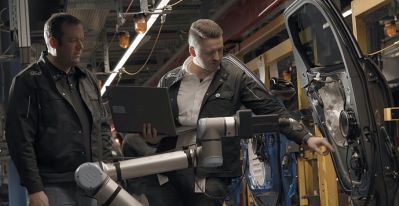

Rather than installing rigid, expensive mechanical positioning hardware, Ford opted for a software-driven, flexible automation approach. They deployed two Universal Robots (UR) collaborative robots (cobots) directly on the line.
To give these cobots the ability to adapt on the fly, Ford equipped them with Inbolt 3D cameras powered by real-time AI vision guidance. Instead of relying on a fixed coordinate system, the Inbolt vision system constantly tracks the moving vehicle body in real-time. It calculates the part's exact position orientation up to 100 times per second, dynamically adjusting the robot's programmed path to match the swaying and movement of the assembly line.
The Results and Future Applications
The implementation has completely transformed the line's efficiency:
- Near-Zero Repair Rates: The precision of the real-time path adjustment has virtually eliminated sealing defects and manual rework.
- Lower Capital Expenditure: Ford bypassed the need for heavy, high-maintenance mechanical fixtures.
- Increased Flexibility: The system can be reprogrammed via software for different vehicle models without re-engineering physical hardware.
Following the success of this water shield application, Ford engineers are already looking to scale this vision-guided cobot architecture. The facility plans to deploy the same real-time tracking technology for more complex, high-torque tasks on the moving line, such as critical tightening and fastening operations.
