AI Metal Design Lowers Heavy Component Material Production Costs
A persistent challenge in additive manufacturing is the traditional trade-off between material strength and ductility. For decades, creating ultra-high-strength steel for 3D printing required adding expensive alloying agents like cobalt and molybdenum. Printed components then required energy-intensive, multi-step thermal cycles to prevent brittleness.
A study published in the International Journal of Extreme Manufacturing details how researchers from the University of South China and Purdue University bypassed this empirical approach. They utilized an "interpretable machine learning" model to engineer a high-performance, cost-effective steel alloy tailored specifically for laser-directed energy deposition (LDED).

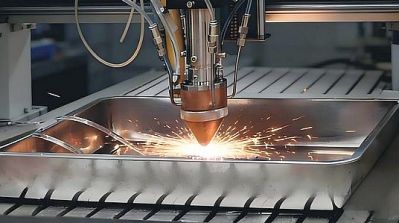

A close-up of a laser-directed energy deposition (LDED) system fabricating the novel AI-designed ultra-high-strength steel, which achieves a rare balance of strength and ductility, and also excellent corrosion resistance. [Image courtesy of International Journal of Extreme Manufacturing]
Instead of operating as a traditional predictive "black box," the algorithm analyzed 81 fundamental physicochemical variables of elements, evaluating traits like electron behavior, atomic radius, and structural wave velocities. The AI produced an optimized formula containing iron and chromium enriched with minimal, low-cost additions of nickel, manganese, copper, silicon, aluminum, and carbon.
Following initial 3D printing, the alloy achieved its final properties through a single-step tempering cycle at 480°C lasting just six hours. Destructive physical testing validated the AI's composition, demonstrating a peak tensile strength of 1,713 MPa alongside a 15.5% elongation break threshold. This represents a 30% increase in baseline strength and a 100% improvement in ductility compared to the unaged metal.
In addition, the nanoscale copper formations alter internal chemistry dynamics, preventing chromium-depleted boundaries that cause premature corrosion. In corrosive salt-water evaluations, the alloy exhibited an annual degradation rate of only 0.105 millimeters, outperforming commercial standards like AISI 420 stainless steel.
Transformational Benefits for Metalworking
This computational breakthrough fundamentally reshapes the economics of heavy industrial and aerospace component manufacturing. By replacing premium elements with abundant alternatives and compressing days of multi-stage heat treatment down to a six-hour process, the metalworking industry can rapidly lower part fabrication costs.
The simultaneous pairing of extreme structural integrity and corrosion resistance makes the metal ideal for highly demanding applications, such as marine turbine parts and lightweight aerospace structures. While the specific algorithmic datasets remain bounded by individual 3D printing cooling dynamics, this methodology establishes a foundational blueprint for automated material design. It provides foundries and fabricators with a fast track to engineer customized, high-performance alloys without relying on costly, trial-and-error laboratory cycles.
