Stop Guessing at the Edge: How TTE Mastered Micro-Tool Geometry
Precision is meaningless if you can't prove it. Italian toolmaker TTE Srl solved the "blind spot" of micro-tooling by replacing traditional inspection with Bruker Alicona’s 3D optical metrology. This switch has transformed their factory floor from reactive quality control to an automated, data-driven R&D powerhouse capable of validating geometries that were previously invisible.
Cristiano Zecchini, TTE's Head of Production and Tool Design
In the world of micro-tooling, there is a dangerous gap between what a CNC grinder can produce and what a standard inspection station can actually "see." For Italian toolmaker TTE Srl, staying competitive in sectors like medical technology and high-end watchmaking meant they had to stop relying on approximations. When your business model is built on solid carbide cutters with mirrored finishes and ultra-sharp lapped edges, "close enough" is a recipe for catastrophic tool failure.
The challenge with high-performance micro-tools isn't just the size; it's the physics of the surface. Polished, non-ferrous tools act like mirrors, scattering light and rendering traditional optical comparators or contact probes useless. TTE realized that to push the boundaries of custom geometries, they needed to move beyond simple inspection and into the realm of actionable 3D data.
The Blind Spot of Traditional Measurement
Cristiano Zecchini, TTE's Head of Production and Tool Design, points out a reality every precision shop faces: you cannot refine what you cannot measure. As TTE moved deeper into specialized micro-dimensions, their existing metrology tools reached a hard limit. Lapped edges -- essential for the clean cuts required in the fashion and medical industries -- were becoming virtually invisible to their sensors.
VIDEO: TTE Sets New Standards in Micro-Tool Precision with the InfiniteFocus G6
This wasn't just a quality control issue; it was an R&D bottleneck.
Without the ability to quantify surface roughness at the nano-scale or validate edge preparation on a high-gloss surface, the design process was stalled by guesswork. TTE needed a system that could handle the "impossible" surfaces: mirrored finishes, steep angles, and sharp-edge radii.
Focus-Variation: Seeing the "Invisible"
The solution came through a shift to Bruker Alicona's InfiniteFocus G6.

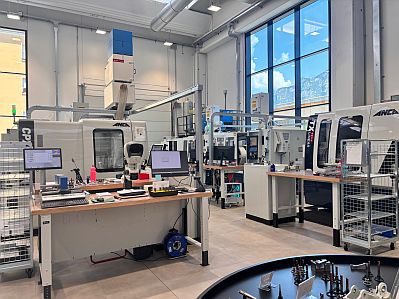

TTE's modern operation showcases the company's focus on accuracy and quality assurance in micro-tool manufacturing.
Unlike older systems that struggle with light reflection, the G6 utilizes Focus-Variation technology. For the plant floor, this means the system can capture high-resolution 3D data even from the most reflective carbide surfaces.
By integrating this optical 3D metrology, TTE transformed their workflow in three specific ways:
- 1. Nano-Scale Roughness: They can now quantify the finish of the flute and the cutting face, ensuring chip evacuation is optimized before the tool ever hits a spindle.
- 2. Edge Prep Validation: The system reveals the true state of a machine-lapped edge, allowing for sub-micron adjustments to tool geometry.
- 3. Shape Fidelity: For the 25% of TTE's business that is purely custom, they can now verify complex, non-standard shapes against CAD models with total certainty.
From Quality Control to Design Partner
The impact on TTE's bottom line has been a shift from defensive quality control (finding bad parts) to offensive process optimization. Using the MetMax digital metrology platform, TTE has automated much of their inspection. Measurements are prepared offline or executed autonomously, allowing the shop to increase throughput without increasing headcount.
Digital twin analysis in TTE's metrology room.
What used to take hours of manual setup and "best-guess" interpretation now takes minutes of automated, repeatable data collection. This speed allows TTE to iterate on new tool designs at a pace that was previously impossible. As Zecchini puts it, the technology isn't just a piece of hardware; it's a partner that allows them to design tools they literally could not have analyzed five years ago.
The Strategic Edge in a Tight Market
By mastering the geometry of the micro-world, TTE has carved out a niche where they aren't just selling a tool -- they are selling guaranteed performance. For the modern toolmaker, the ability to turn invisible geometry into actionable data is no longer a luxury; it is the only way to stay in the game.
