Beyond the Wash Tank: Why "Clean" is the New Tolerance in Precision Machining
In today's metalworking landscape, "clean" is no longer a subjective term -- it is a measurable technical specification. It's not enough to meet dimensional tolerances; manufacturers must now hit Surface Cleanliness Classes (SCP) that demand the removal of sub-micrometer particles and nanometer-level chemical films. But as the line between the factory and the clean room continues to blur, is your current finishing process actually a hidden bottleneck to your next major contract?
The extremely high demands placed on manufacturing precision in high-tech industries include the cleanliness of components.
For decades, the machine tool industry has obsessed over microns of mechanical tolerance. But as the market shifts toward semiconductor components, e-mobility, and aerospace sensors, a new "tolerance" has emerged that is just as critical as dimensional accuracy: surface purity.
In this high-stakes landscape, "cleaning" is no longer a peripheral utility at the end of the line. It is a core manufacturing process. Failing to meet sub-micrometer particulate standards or nanometer-level film specifications doesn't just mean a rejected part; it means a compromised supply chain in industries where the cost of failure is astronomical.
The Shift: From Chip Removal to Molecule Removal
Standard metalworking focuses on the macro: clearing chips, coolant, and heavy oils. However, the high-tech sectors driving today's margins -- such as EUV lithography, photonics, and vacuum technology -- demand the removal of invisible enemies.

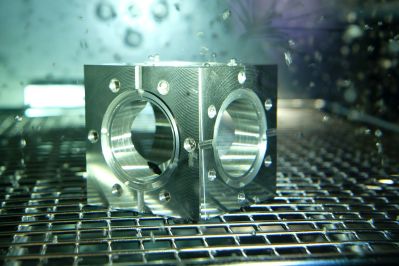

The specifications for particulate cleanliness extend into the submicrometer range and even nanolayers of organic and inorganic residues.
We are no longer just talking about "clean" parts; we are talking about Surface Cleanliness Classes (SCP) according to EN ISO 14644-9. This involves managing:
- Sub-micrometer particles that interfere with laser optics.
- Ionic residues that cause corrosion in electronics.
- Hydrogen-induced outgassing (HIO) substances that can ruin a vacuum environment.
For the modern plant, achieving these levels requires moving away from the "one-size-fits-all" aqueous parts washer and toward a sophisticated, multi-stage chemical and physical strategy.

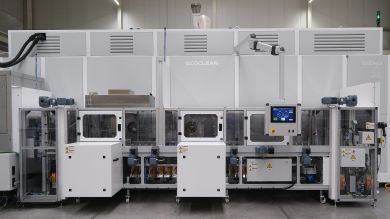

In chamber systems, such as this two-chamber cleaning system for water-based processes, the design, system technology, media flow and treatment are specially adapted to the specific requirements of ultra-fine and high-purity cleaning.
Engineering the Process: The Variables of Purity
Selecting a cleaning system today is as complex as selecting a 5-axis machining center. It requires an audit of the entire production chain. To build a reliable process, manufacturers must answer five critical questions:
1. Material Sensitivity: How will the substrate react to modified alcohols vs. aqueous chemistry?
2. Geometry Constraints: Are there blind holes or internal capillaries where "dead zones" prevent cleaning?
3. Contaminant Profile: Are we removing sulfur-free cooling lubricants or specialized polishing pastes?
4. Environmental Integration: Is the machine connected directly to a Clean Room (Class 7 or 6)?
5. Drying Technology: How do we ensure zero "water spots" or residues remain after the final rinse?
Strategy: The Multi-Stage Workflow
True high-purity cleaning is a marathon, not a sprint. It begins with Intermediate Cleaning to ensure parts are "oil-free" before they ever reach the final precision stages.

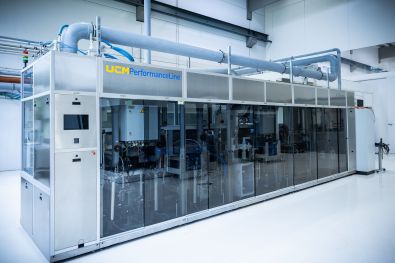

Whether you need to handle a wide variety of materials, meet high throughput requirements and/or strict cleanliness specifications, modular ultrasonic multi-bath immersion systems can be efficiently adapted to the task at hand.
For complex geometries, specialized technologies like Pulsed Pressure Cleaning (PPC) and Ultrasonic Plus are utilized. These aren't just buzzwords; they represent the mechanical energy needed to reach into the "valleys" of a machined surface.
- Single-Chamber Systems: For large, heavy structural components, vacuum-based systems like the EcoCvela offer high-performance degreasing and particle removal in a small footprint.
- Multi-Bath Immersion: For high-throughput shops and plants, modular lines like the UCMSmartLine allow for a "triage" of cleaning steps -- moving from rough wash to ultra-pure rinse, followed by specialized vacuum drying.
The Infrastructure of Certainty
You wouldn't ship a precision aerospace part without a CMM report; similarly, you cannot guarantee cleanliness without analytical validation. This is where the partnership model becomes vital.

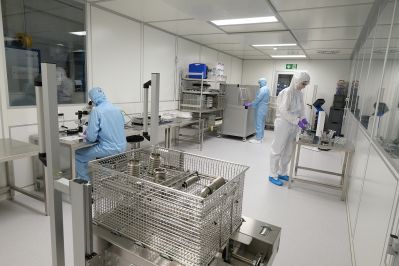

A High Purity Test Center with a cleanroom and various measuring and analysis methods is available for process design and definition of process parameters under production-related conditions. [Image courtesy Ecoclean]
The transition to high-purity manufacturing requires access to a High Purity Test Center. This environment allows manufacturers to run trials in ISO-certified clean rooms using Residual Gas Analysis (RGA) and Fluorescence Measurement to prove the process works before investing in capital equipment.
Final Thought for the Factory Floor
The industrial transformation is here. Those who view cleaning as a "sink at the end of the hall" will find themselves locked out of the most profitable sectors of the next decade. Modern cleanliness is an integrated manufacturing discipline -- one that requires the same level of engineering rigor as the machining process itself.
