What Are the Most Reliable Tools for Reducing Weld Rejects?
When industry professionals discuss how to reduce weld rejects, they often focus on a fabricator's technique and training. Those aspects are essential, but high-quality welding also involves using appropriate specialty tools throughout the process. What are the most reliable tools for reducing weld rejects in industrial projects, and what makes them stand out?
1. Pipe Alignment Tools
The fit-up process in welding happens when fabricators conduct a preliminary assembly of the parts to check their alignment, mating and positioning. They use tools or hold the pieces in a certain way to verify that they have achieved the desired results. A flawless fit-up directly improves quality by ensuring solid, durable results. When parts lack proper alignment, welding defects are more likely, and there is an increased risk of structural weaknesses or visually identifiable issues.

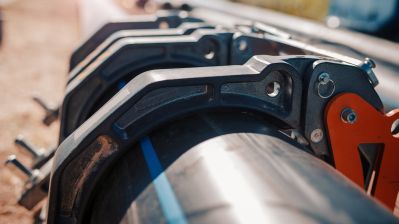

Pipe alignment tools
Walhonde Tools is a leading designer and producer of pipe and tube alignment tools. Its products shrink pipe alignment time frames from hours to minutes. Established in 1986, this company manufactures all of its products at its headquarters in South Charleston, West Virginia.
Fit-Up Pro also focuses on pipe alignment tools, providing a sales network of over 250 global locations to maximize customer convenience. It caters to customers in demanding industries, such as aerospace and mining.
Industrial decision-makers seeking an extensive assortment of pipe alignment tools can find it at Trick Tools. This provider stocks over 100 brands in its inventory and ensures transparency with its no-junk guarantee.
2. Fillet Weld Gauges
Fillet welds are among the most common types. They join materials that are perpendicular or at an angle to each other. Fabricators use fillet weld gauges to measure specific parameters and prevent incorrectly sized welds. These gauges frequently come as a set of stainless-steel blades, each one with a convex and concave arc. After choosing the correct size for the project, the user fits the blade against the welded joint to ensure it rests flush with the material.
Industrial users seeking a more straightforward solution should consider adjustable fillet weld gauges, which are all-in-one tools that eliminate the need to carry multiple blades. Newman Tools has an option that weighs as little as 1 ounce, making it easy to carry between sites.
Alternatively, Matcon has a digital gauge that weighs only 70 grams and checks welds on the millimeter scale. This option also lets people switch between millimeters and inches, depending on the project type and scale.
G.A.L. Gage Company offers other highly portable options, including mini fillet weld keys that people can carry on a keychain and order in either metric or imperial measurements. These possibilities allow users to achieve high-quality welds by bringing the necessary verification tools wherever they go.
3. Bridge Cam Gauges
Bridge cam gauges are multifunctional tools that allow welders to check welded surfaces and joints before, during and after the fabrication process. This tool can show them the depth of undercut or pitting, the type of misalignment, or the capping size of excess weld metal, among other things. These products are also easy to use, typically featuring a sliding pointer and a rotating dial, allowing people to move each one until it makes contact with the weld under examination.

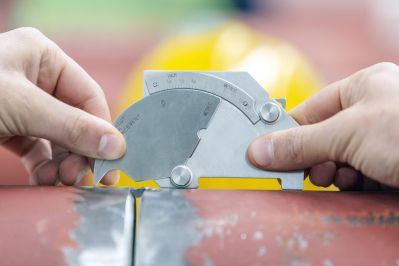

Bridge cam gauge
Berg Engineering & Sales Company, Inc. offers a pocket-sized version [link]with metric and imperial units to streamline quality checks. Its fully stainless-steel design offers excellent durability.
M-Testco also supports final checks with a digital welding tool that assists with differential measurements and can connect to a computer or printer to support recordkeeping.
4. Heat-Sensitive Crayons
Welders prevent thermal defects by using tools to verify that the welded material has reached a specified target temperature. During the preheating phase of warming the base metal, these tools support interpass temperature control, which requires fabricators to ensure that the temperature of a welded area between successive passes does not exceed a maximum limit. Monitoring the interpass temperature helps maintain weld quality by minimizing the risk of hydrogen cracking and preventing the potential breakdown of some materials' mechanical properties.
Heat-sensitive crayons are a user-friendly method for performing these temperature checks. Welders select one that matches the target preheating or interpass temperature. They then touch the crayon to the metal or strike it against the material to observe the effects. If the crayon leaves dry, chalky remnants, that means the weld has not reached the required temperature. If it instantly melts and leaves a smear, welders can proceed with a minimal risk of thermal defects.
Weldfabulous is one of the many sellers of Tempilstik, the original brand of heat-sensitive crayon. This option produces over 11,000 6-inch marks and requires no calibration before use.
TIPTEMP also has color-changing options for fabricators who prefer a different visual cue. Some transform into several hues after reaching particular temperature thresholds.
5. Infrared Thermometers
While heat-sensitive crayons require welders to touch them to hot surfaces, infrared thermometers offer a safer and highly accurate alternative, albeit a more expensive one. Infrared thermometers work at a distance, requiring the user to stand away from the hot object, aim the thermometer toward it and pull the trigger.
Preheating steel pipe and digital heat meter
A major downside of these tools is that they do not generate accurate readings on shiny or reflective surfaces. This limitation requires welders to carefully consider the materials they are working with before choosing the appropriate tool to check temperature and maintain tight quality control.
Industry-Railway Suppliers, Inc. offers an option that can measure temperatures exceeding 1,600° Fahrenheit, making it a suitable solution for welders. It also comes with a carrying case, helping professionals take it in the field while protecting it.
Alternatively, Optris has an infrared thermometer with a response time of only 1 millisecond, supporting fabrication productivity. Its double-laser sight can precisely mark each measuring spot while measuring metals, ceramics and metal oxides.
Industrial supplier Grainger features an extensive assortment of infrared thermometers, including mini and pocket-sized versions. Professionals can purchase options for harsh environments, such as those found on oil rigs and at mining sites. People can sort through the options by focusing on parameters, such as the distance-to-spot ratio or the maximum temperature a product can measure, ensuring they get the tools to support their workflows.
Methodology for Choosing the Most Reliable Tools
Individuals interested in reducing weld rejects by strategically incorporating tools into their workflows should consider their most common pain points and how industrial products can address them. The options discussed above stand out due to their frequent use by welders across various industries. Professionals view them as trustworthy products for maintaining satisfaction through reduced defect rates.
The companies mentioned offer welders extensive product assortments, excellent customer service, and detailed specifications or other resources to support confident purchase decisions. Because many of the providers have decades of industry experience, those in the market for welding tools can trust the brand representatives and their expertise on particular project requirements.
Choosing the Best Tools for Reducing Weld Rejects in Industrial Projects
Specialized tools for preparing and measuring welds help users dramatically reduce defects through enhanced visibility. High rejection rates in fabrication shops can significantly impact the bottom line and lead to customer dissatisfaction. Leaders should perform root-cause analyses to determine the most common reasons for weld defects. They can then invest in the appropriate tools to help operators identify problems early, rather than during final inspections.
