Advanced 3D machine engine highlights GibbsCAM's 2026 release
GibbsCAM's 2026 release features the new Advanced 3D Machining engine -- delivering faster calculation times, more efficient toolpaths, and improved surface quality.
GibbsCAM 2026 also offers a more intuitive user interface, a new GibbsCAM Viewer for company-wide data access, and improvements in Variable-B Turning. Additional upgrades strengthen multi-axis machining, tool management, and simulation capabilities.

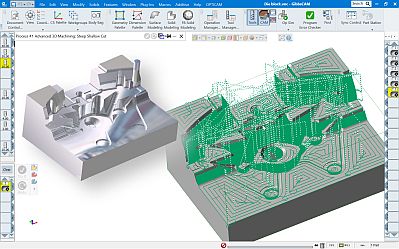

A New Era for Advanced 3D Machining
At the heart of GibbsCAM 2026 lies a completely re-engineered Advanced 3D Machining Engine.
This new core delivers significant gains in toolpath generation speed, ensuring faster programming cycles and fewer iterations. It produces smoother, more predictable toolpaths, leading to superior surface finishes and a reduced need for secondary finishing.
Despite the major architectural shift, the familiar GibbsCAM interface remains unchanged, allowing users to benefit immediately without requiring retraining.

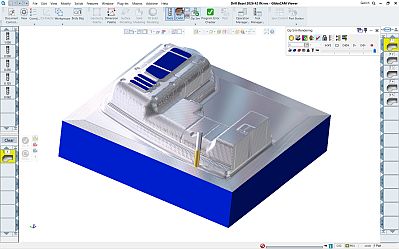

GibbsCAM Viewer -- Access for the Entire Enterprise
With GibbsCAM Viewer, organizations gain the ability to review, inspect, and communicate CAM data anywhere in the company -- without risk of altering toolpaths or NC code. Operators, managers, and quality teams can visualize parts, verify geometry, analyze toolpaths, and generate reports using the same familiar interface.
This tool streamlines communication and helps reduce errors while keeping programming data secure. Machinists can now run parts with greater confidence and knowledge of what to expect.
Advancements in Turning and MTM Programming
GibbsCAM 2026 significantly enhances Variable-B Turning with a more intuitive, interactive workflow. Programmers can define tool angles directly along the cut path using control points, with smooth interpolation for precise control over complex operations. This makes Variable-B Turning more flexible and easier to use, reducing setup effort while improving accuracy.
For Multi-Sided Turning tools such as Sandvik Coromant's CoroTurn® Prime inserts, toolpath generation is now smarter and more efficient. The system calculates material engagement intelligently, maximizing insert geometry while maintaining safety. The result is improved material removal, consistent operation, and greater efficiency in advanced turning tasks.
Smarter Tool Management
GibbsCAM 2026 introduces the new Tool Usage Reporter, offering precise, operation-based tracking of all tools.
Accessible directly from the Tool dialog, this manager-style interface displays every operation that uses a selected tool, with intuitive row selection, workspace highlighting, and direct access to operation controls. Users can quickly identify, select, or remove tool-linked operations, making tool management faster and more transparent.

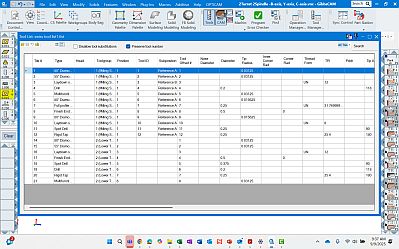

The release also brings a redesigned, spreadsheet-style Tool List View, providing a clear, column-labeled layout for reviewing and editing tools. Both the standard and list views now include filtering by tool group, enabling users to isolate and manage specific sets of tools easily. Together, these enhancements simplify tool organization, improve workflow efficiency, and give programmers better oversight of tool usage in complex projects.
Expanding Multi-Axis and 5-Axis Capabilities
GibbsCAM 2026 further refines multi-axis machining with advanced tilting strategies, improved AutoTilt functionality, and smarter toolpath orientation to reduce unnecessary machine movement.
The AutoTilt feature now supports bullnose tools, increasing versatility. Two new strategies, Tilted into Plane and Tilt Tool in a User-defined Plane, provide programmers with precise control over tool axis orientation, aligning tilt with specific rotational axes for more stable and efficient machining. The enhanced automatic tilting kernel ensures consistent results across existing toolpaths, simplifying the adoption of the latest features.

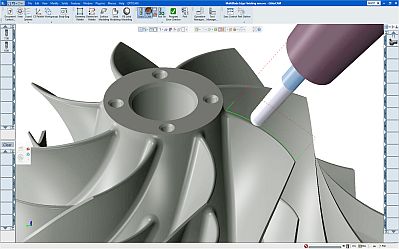

Multiblade machining also sees significant improvements. The new Edge Finishing strategy delivers high-quality surface results while protecting delicate leading edges, and expanded tool support now includes flat end mills, bullnose mills, and taper tools. Users can customize feed rates for links, lead-ins, lead-outs, and edge extensions, reducing non-cutting time and optimizing cycle efficiency.
Additional upgrades include enhanced wall finishing, improved rotary machining finishing, and more effective deburring, giving operators greater control, speed, and precision across complex multi-axis operations.
