Amada's new combination punch/laser machine offers high punching force and improved laser beam
AMADA offers two series of punch/laser combination machines: the LC-C1AJ Series of compact machines, which is capable of energy-saving, low-cost process integration, and the ACIES-AJ Series, which features v-mix, v-lot production, uninterrupted operation, and high-quality punch processing.

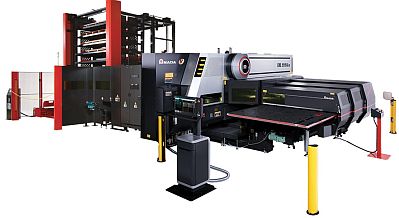

To compliment these technologies, AMADA has launched the EML-AJ Series combination machines capable of performing high-quality punching and laser cutting and displaying enhanced comprehensive capabilities featuring high productivity and many automated features for uninterrupted operation.
EML-AJ Series combination machines come with all the punching functions inherent in single-function punching machines. Combined punches and dies are supplied with a Z-turret with different diameters of ø1010 mm upper and ø1200 mm lower or a high-capacity turret of ø1200mm upper and lower.
VIDEO: EML 2515 AJe Fiber Laser Punch Combination Machine
These machines include the same punching force of 300 kN as AMADA's best-selling EM Series turret punch presses. The EML-AJ Series also achieves a 25% improvement in stroke frequency (number of hits per minute) compared to conventional machines, making it the fastest punch processing machine available from AMADA.

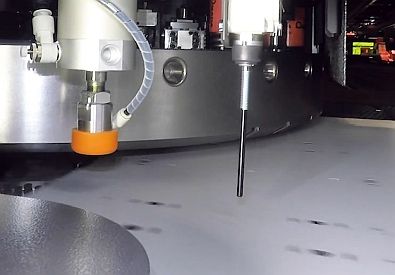

With the EML-AJ Series, AMADA has improved the quality of the laser beam with a 3kW fiber laser oscillator combining high oscillation efficiency with new optics. It employs assist gas rectifying technology for higher quality processing than conventional machines, while increasing cutting speed by a factor of three. The series also features an energy-saving operation, with power consumption reduced to one third of conventional machines.
The EML-AJ Series allows up to 24 hours of continuous operation by combining a wide range of optional automation solutions, such as automated Punch and Die Changer (PDC), nozzle changer, laser scrap unloading device, and a cleaning function for cutting plates. As a result, customers can build a system to meet their needs with uninterrupted operation.
