OSG expands product line -- NEW end mills, drills and insert

OSG has expanded its A Brand AE-H Series with the release of the A Brand AE-CPR2-H. The A Brand AE-CPR2-H is a series of advanced performance two-fluted long neck corner radius end mills for hardened steels.

Features & benefits:

• Flute Design -- Low cutting resistance reduces tool deflection, ensuring a high-quality machined surface.
• Optimized 3D Negative Geometry -- Balances sharpness and cutting-edge rigidity for superior performance.
• Flat Cutting Edge -- Designed for bottom surface milling, achieving outstanding results with minimal tool wear while delivering higher precision and a smoother machined surface.
• Corner Radius & Shank Precision -- With a corner radius accuracy of ±0.002mm and an h4 shank tolerance for secure and stable tool holding.

OSG has expanded its A Brand AE-CPR4-H End Mill series to now include additional sizes. The A Brand AE-CPR4-H is a series of advanced performance four-fluted long neck corner radius end mills for hardened steels.

Features & benefits:

• 4-Flute Design -- Achieves high efficiency milling with a 4-flute configuration across all sizes in this list.
• New Spiral Gash -- For Improved chip evacuation and suppression of chatter.
• Unequal Index -- Suppresses chatter to enable high speed, deep reach milling.
• Corner Radius & Shank Precision -- With a corner radius accuracy of ±0.002mm and an h4 shank tolerance for secure and stable tool holding.

The A Brand ADO-40D & 50D drill series has expanded to now include additional sizes. The A Brand ADO is a series of high-performance coolant-fed carbide drills for ferrous & non-ferrous materials.

Features & benefits:

• OSG's EgiAs Nano Coating Technology -- Higher coating oxidation temp & hardness dramatically improve wear resistance.
• Wavy form cutting edge design -- Sharper cutting action reduces thrust forces and produces smaller chips for easy hole processing.
• Internal Coolant Holes -- Coolant delivery at the cutting edge reduces heat and improves chip evacuation, thereby increasing tool life and enabling faster drilling speeds.

OSG has expanded the EXOCARB® End Mill Series with the release of the EXOCARB® WXL-EBM. The EXOCARB® WXL-EBM is a series of premium performance carbide end mills with OSG's proprietary WXL® coating.

Features & benefits:

• Ultra-Fine Micro-Grain Carbide -- The hardest most wear-resistant carbide possible for incredible wear resistance.
• High Precision Geometry -- High accuracy all but eliminates need for benching and rework for mold makers.
• High Strength Core Diameter -- Tools utilize thicker core diameters for ultimate strength and rigidity.
• WXL® Coating -- Higher coating oxidation temp & hardness dramatically improve wear resistance.

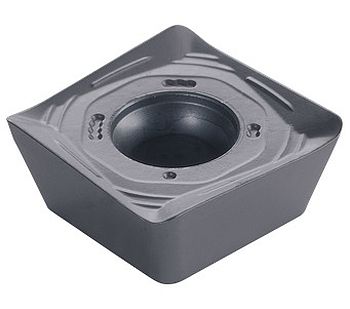

OSG has expanded the PHOENIX® indexable series with its latest insert. The OSG PHOENIX® PSF & PSFL MCD insert is a 90° indexable shoulder cutter for face milling.

Features & benefits:

• Square Insert with 4 Cutting Edges -- High performance with long insert life and low cost per edge.
• Compact Insert Size for Lighter Depths of Cut -- Superior performance in face milling applications.
• Sharp 3-Dimensional Chip Breaker -- Reduced cutting forces.
• End Mill and Face Mill Styles, Inch and Metric -- Complete offering.

Want more information? Click below.
