These 7 Abrasives Provide the Best Value for Industrial Applications
In metal fabrication, the abrasive you specify does more than remove stock -- it sets the tempo for throughput, labor cost, and coating performance. Choosing a grain that delivers a fast cut, long life, and safe handling can tighten schedules and widen margins. These seven abrasives consistently offer the best cost-to-performance value across grinding, blasting, and finishing lines in OEM and job-shop environments.

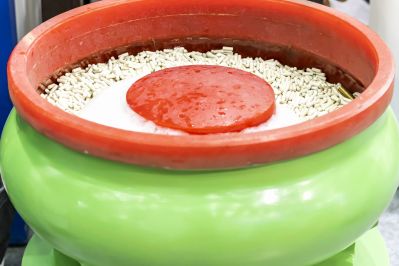

A vibratory polishing machine filled with stone or ceramic abrasive media.
Methodology
What is the best value abrasive for industrial applications? Every abrasive on this list earned its place because it excels where shops feel the difference day-to-day:
- Cut rate under shop conditions: It never reached the shortlist if it didn't remove metal or coatings faster than common alternatives.
- Useful working life: Grains that stay sharp or resist shattering stretch, such as zirconia's self-sharpening edges or diamond's extreme hardness, were considered, as well as change-out intervals and lower consumable speed.
- Application fit: Each medium dominates a specific niche. Generalists that merely "worked everywhere" but excelled nowhere were dropped.
- Finish and coating readiness: Only abrasives that left a consistent anchor pattern or fine surface made the grade, saving rework and boosting coating adhesion.
- Health and compliance footprint: Low-dust or certified options, such as biosoluble superoxalloy or SSPC-listed media, scored higher because they simplify safety programs and air-permit paperwork.
Traditional minerals, such as aluminum oxide, remain indispensable because they hit productivity targets at rock-bottom cost. However, engineered grains like superoxalloy stretch the value curve with faster removal, lower dust, and longer wheel life. These practical yardsticks mirror the strengths highlighted in each abrasive.
1. Engineered Superoxalloy
Produced by 10X Engineered Materials from mineral-wool by-product, superoxalloy particles are amorphous, tempered and biosoluble -- the only blasting media certified as such. They resist shattering at blast pressures up to 130 psi, generate low dust, and carry SSPC AB-1, CARB and NAVSEA QPD approvals. Users report that its finish can hold for up to two weeks without rust formation, even in high humidity and tough outdoor conditions. Superoxalloy is the best fit for high-pressure, dry-blast surface preparation on structural steel, pipelines, and marine hulls where low dust and quick throughput are critical.
A shipyard that switched to 10X DynamiX for hull blasting saw an 80% reduction in dust and a 40% increase in working speed thanks to fewer media changes and improved visibility.
VIDEO: What is a Superoxalloy?
2. Aluminum Oxide
Fused aluminum oxide clocks in at Mohs 9 -- making it hard enough for most carbon steels while priced for daily use. Its blocky shape fractures slowly so operators can keep the same wheel or belt on mid-steel beveling tasks for extended runs. It best fits general-purpose grinding, belt sanding weld seams, and air-blast cleaning.
Norton A275 belts are designed with a special latex material that increases tear strength by 50%-60%, thanks to tighter grading and heat-treated backing, making it best suited for car panels.
3. Zirconia Alumina
Adding zirconium oxide and exposing it to low-level heat produces a grain that micro-fractures and leads to transformation toughening -- continually exposing sharp cutting edges. Hardness is typically 9 Mohs and toughness doubles that of straight AO to allow aggressive pressure without premature dulling. It best fits heavy stock removal on carbon steel and stainless steel, back-grinding for distortion control, and high-pressure robotic stations.
Norton BlueFire R860 discs feature a grain that can last 30% longer than others in its class and can handle exotic alloys. Operators favor the cooler grind that reduces the temper color of the base metal.
4. Ceramic Alumina
Often referred to as corundum in crystalline form, ceramic grains -- like those used in 3M Cubitron II and Norton Blaze -- are micro-structured to break along controlled paths to maintain razor-sharp points. Although nominal hardness remains at 9 Mohs, their cutting efficiency and thermal stability allow higher feed rates and reduced heat tint. Shop studies show that grinding wheels with this component produced twice as many parts as the typical wheel. It best fits high-volume, automated grinding where labor minutes and uptime outweigh the abrasive price.

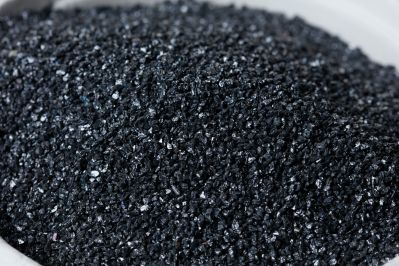

A macro close up of silicon carbide grains.
5. Silicon Carbide
With a Mohs hardness of 9 and a sharp needle-like morphology, silicon carbide slices quickly but fractures more readily than alumina grains. This makes the material ideal for nonferrous alloys, titanium, FRP, and hard plastics. It best fits cast-aluminum dressing, carbide tool lapping, composite deburring, and architectural glass edging.
6. Diamond
Diamond abrasives have a Mohs of 10 and excel on the hardest and most brittle materials, delivering submicron finishes and exceptional wheel life. The upfront cost is the highest, but on tight-tolerance work, the economics swing in the diamond's favor quickly. It best fits precision tool grinding, ceramic valve components, and high-pressure slurry cutting.
7. Cubic Boron Nitride (CBN)
Nearly as hard as a diamond, CBN wheels keep a cool edge and excel at interrupted cuts. Toolmakers typically justify the cost through tighter tolerances and fewer scrap parts. CBN best fits high-Rc steels, Inconel and finish grinding, or carburized gears.

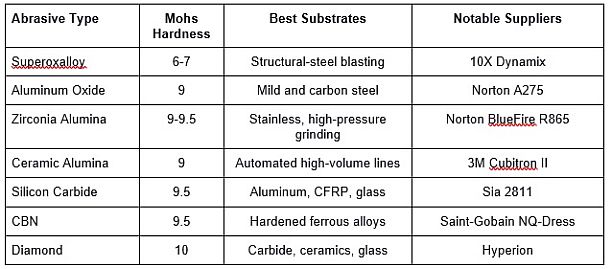

Key Features at a Glance
Selecting the Right Fit
Material hardness, machine horsepower, desired Ra, and environmental compliance all play roles in the final selection. Begin with the part substrate, removal objective and shortlist grain types, and then try them under production pressure. Suppliers that offer field engineering -- 10X for blasting or leading wheel vendors for precision grinding -- can fine-tune nozzle or wheel specs, ensuring that the abrasive's intrinsic value translates to lower cost per finished unit on your floor.
Making an Engineered Decision on Abrasives
Abrasive spend is small on the purchase order but huge on the clock. Evaluating grains through the lens of productivity, longevity, and safety uncovers hidden savings that compound over every shift. Metalworking teams periodically benchmarking new technologies often find double-digit cost reductions without adding labor or capital.
Review your current media mix, run a controlled trial, and let the numbers guide the next engineered decision. Document the outcome in cost-per-square-foot or cost-per-part terms so the payoff is unmistakable. Repeat the exercise each quarter to lock in new gains before competitors catch up.
