World's Most Expensive Metal Now Viable for Additive Manufacturing
Using precious metals in additive manufacturing (AM) provides new ways to utilize these materials' unique properties. However, the high cost of these metals means that large-scale production is often beyond the reach of many manufacturers. To address this challenge, Renishaw helped precious metal AM pioneers, Cookson Industrial, succeed in making the production of platinum rhodium parts for industry commercially viable.
Based in Birmingham, UK, Cookson Industrial is part of Cooksongold, one of the largest suppliers of precious metals, jewelry components and tools to the global jewelry trade. Their parent company is HM Precious Metals, one of Europe's leading refiners and processors of precious metals, with over 950 employees across seven countries.
Cookson Industrial is on a mission to support businesses to redefine the use of precious metals in industry. The company provides an end-to-end service, including consultancy, R&D, NPD and production, helping revolutionize the industrial use of precious metals such as gold, silver and platinum.
Cookson Industrial's metallurgists and engineers design and develop wire, sheet, grain, sputtering targets, brazing alloys and atomized powder for industries ranging from aerospace and automotive to medical and glass fiber manufacturing.
Challenge
When rhodium is used as an alloying agent for hardening and improving the corrosion resistance of platinum, the outcome is a new material known as platinum rhodium. This highly resistant alloy is used in some of the most demanding applications, including furnace windings and bushings for glass fiber production. This material is the only commercially available metal that can withstand the high temperature and corrosive environment of molten glass.
For this reason, Cookson Industrial intended to use platinum rhodium to 3D print an extrusion mold designed for glass fiber manufacturing. However, platinum rhodium is one of the world's most expensive metals, with prices averaging over $100,000 per kilo. Given the high cost of the material, the company needed to keep waste to a minimum by retrieving and reusing as much powder as possible. This is where a RenAM 500S Flex additive manufacturing (AM) system from Renishaw provided a solution.
Solution

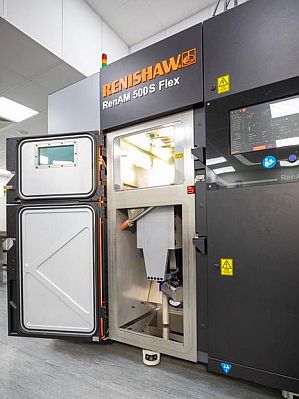

Part of the RenAM 500 series of high-productivity laser powder bed fusion (LPBF) systems, the RenAM 500S Flex is optimized for R&D applications. Equipped with an open-loop powder system enabling quick and easy powder swapping, this AM system speeds up the qualification of material properties, part design and process parameters. The powder management system is designed for external sieving, which allows for greater flexibility in selecting powders.
Cookson Industrial tasked Renishaw's AM engineering team with customizing the RenAM 500S Flex to maximize powder retrieval. Initial tests showed the system was already capable of achieving a low powder loss of less than 1.5 per cent. However, Cookson Industrial needed to reduce these losses even further to less than 0.5 per cent to minimize platinum rhodium waste and the associated costs.
"Achieving near-zero wastage of its precious platinum rhodium powder was, quite understandably, a top priority for Cookson Industrial," commented Jason Morgan, Senior Applications Engineer at Renishaw. "We worked with Cookson Industrial's engineers to identify 'powder traps' and then embarked on a fast-paced schedule of re-designing and re-testing system components to maximize powder retrieval, without impacting the overall system performance."
The customization process included removing parts where small amounts of powder can accumulate, including overflow bellows and the rear overflow vent system. Renishaw further optimized chamber design to prevent any powder loss during the depowdering process.
In addition, the company's AM team designed special casings and covers for the lower chamber, powder flask chamber and filter cabinet, to eliminate any other potential powder traps.
Results

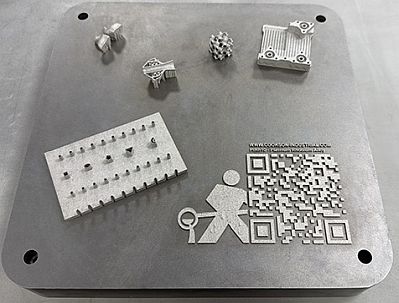

Renishaw's customization process was a success, enabling the RenAM 500S Flex to reduce the waste of platinum rhodium powder beyond expectations. The AM machine saw a staggering 95 per cent reduction in trapped powder, allowing Cookson Industrial to minimize losses and retrieve the equivalent of a teaspoon of powder per cycle (a savings of ~$1300).
"Renishaw's technology and expertise were critical to the success of this important R&D project, paving the way for scalable production of high-value platinum rhodium parts across a range of applications," commented Nikesh Patel, Head of Cookson Industrial. "The ability to minimize powder loss will allow our company to save hundreds of thousands of pounds over the machine's lifetime, which makes the difference between the application being commercially viable or not."
Building on the RenAM 500S Flex's outstanding results, Cookson Industrial is now planning to use platinum rhodium in other applications such as catalysts and aerospace engine nozzles.
"The production of platinum rhodium components demonstrates that precious metals can be a commercially viable field of AM," added Morgan. "I am excited to see what Cookson Industrial does next."
