Makino's Latest Version Sinker EDM: Larger Strokes and Improved, Longer-Lasting Filtration System
The latest version of the EDAF Series features an improved work tank flow pattern that removes debris from the work tank more efficiently. Also, the filtration system has been improved to include the ability to achieve 10% longer filter life.
The EDAF Series features the Adapti Spark Function (AiSF). AiSF automatically adjusts the discharge current and jump settings which results in a more stable process with a reduction of machining time and electrode wear. The EDAF Series integrates thermal cooling of the Y- and Z-axis casting components to provide thermal stability and long-term sustained accuracy. The base casting of the machine is the dielectric reservoir which improves thermal stability and minimizes the machine footprint.

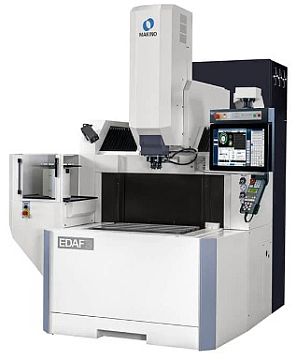

VIDEO: Makino EDAF3 Sinker EDM
Work tank access is unrestricted on the EDAF3 with a programmable, three-sided drop-tank system, which simplifies operation, ATC (automatic tool changer) and automation integration for greater unattended machining time.
The operator has an outstanding vantage point of the machine during operation and can effortlessly unload, load and set up new jobs with the drop tank in the fully lowered position, which drops below the worktable level.
The machine's stationary worktable design can also be configured to provide additional depth to the work tank with the 50mm (2.0") and 100mm (4.0") table-down configuration options. The standard fire extinguisher and U/V sensor systems provide safety, protection and confidence for hours of unattended operation.
