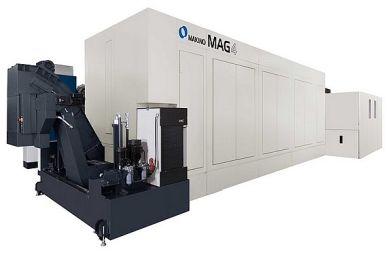

Makino's MAG4 5-Axis MC Features Powerful 33,000 RPM Spindle, Ideal for Aerostructure Components

Makino's MAG4 expands the MAG Series of 5-Axis horizontal machining centers purpose built for monolithic aluminum aerostructure components.

MAG4's Y axis stroke is increasing to 2,200mm (X4000 Y2,200 Z800) and the pallet size is increasing to 3,500 x 2,000mm.

At the heart of Makino's MAG4 is the powerful 33,000 RPM 130kW spindle. This is the same spindle utilized across the MAG family and provides peak roughing metal removal capabilities of up to 10 liters per minute.


VIDEO: Introducing the Makino Mag4 5-Axis HMC

The compact A/C rotary axis has a very short 215mm pivot distance allowing full 5-axis access to parts as large as 3,300 x 1,500mm.

Included on the MAG4 are large capacity tool magazines and a pallet changer with horizontal work setting stations supporting high spindle utilization. The MAG4 is compatible with the Makino MMC2 automatic pallet transfer and storage system for extended periods of unattended production.

Want more information? Click below.

Makino/MAG
