Dual-Column MC Features 2 Electrospindles that Hit Speeds up to 20,000 rpm

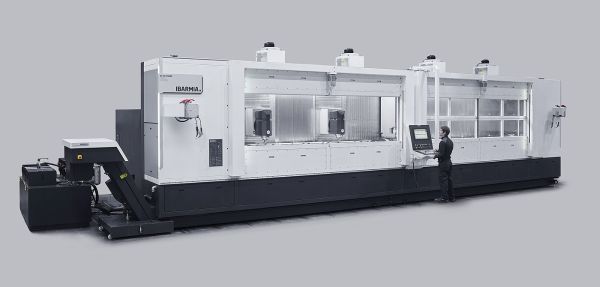

Ibarmia's 2x ZV 40/L9400 EXTREME is a machine designed to excel in high-production environments thanks to its revolutionary dual-column design. Combining unmatched power, precision, and operational efficiency, this machine represents a significant leap forward in machining solutions, according to the company.

The 2x ZV 40/L9400 EXTREME features two independent heads, each equipped with high-performance synchronous electrospindles capable of reaching up to 20,000 rpm. With 60 kW of power and a torque of 60 Nm, it ensures outstanding results in any operation, from high-speed machining to tasks that demand exceptional force and precision.

Its extended axis travel provides exceptional flexibility for machining large components: 7,900 mm on the X-axis (reduced to 2,790 mm in pendulum mode), 620 mm on the Y-axis, and 900 mm on the Z-axis. The adjustable spindle distance, ranging from 1,500 mm to 4,290 mm, adapts seamlessly to complex work configurations with complete accuracy and control.

VIDEO: Meet the IBARMIA ZV Extreme Twin

Pendulum Machining for Continuous Production

Productivity lies at the core of the 2x ZV 40/L9400 EXTREME. Featuring a dual trunnion table system, the machine can machine one part while preparing another, eliminating downtime and ensuring continuous workflow. Additionally, the tool carousels for each spindle optimize operation transitions, enhancing efficiency and significantly reducing cycle times.

The 2x ZV 40/L9400 EXTREME is built to deliver consistent performance in the most demanding industrial environments. Its high-pressure cooling system, with coolant at 22 bar, ensures optimal results even in extended operations. The MQL lubrication options, both internal and external, enable machining in wet or dry conditions, adapting to a wide range of materials and requirements.

In terms of safety, it includes a pendulum wall with an automatic door and peripheral hydraulic and pneumatic systems to protect both the operator and the machine's key components. This thoughtful design ensures reliable and secure operation across all types of tasks.

Want more information? Click below.

Ibarmia
