ANCA's Peel Grinding Solution: Blank to Finished Tool in Single Setup

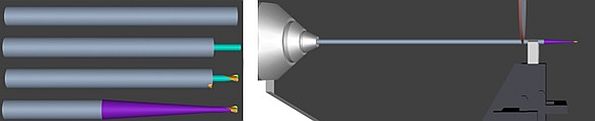

ANCA's advanced grinding solutions offer seamless finished tool grinding in a single setup, including blank preparation. This setup features the P-axis Arobotech, which supports blanks at the grind point, enabling the efficient production of various tools with a surface finish below 0.2 Ra.

This process significantly reduces cycle time while boosting productivity. The 3000 RPM headstock on the MX7 platform further enhances performance, allowing the tool to spin at optimal speeds for this application.

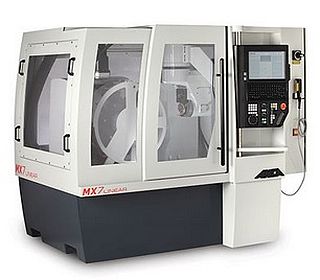

The MX7 platform, equipped with six wheel packs as recommended by ANCA's application team, supports the grinding of various tool shapes in a single setup, eliminating the need for wheel changes. Depending on the tool's shape and geometry, grinding can be performed at either the 3 or 12 o'clock position.

Additionally, a specially designed hydraulic pump controls the clamping pressure based on diameter, including up/down pressure, to achieve faster cycle times.

Key benefits include:

• Tool diameter range: 1mm to 25.4mm

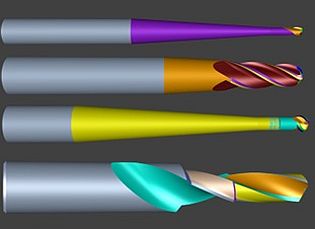

• Capability to handle small to large diameter taper ballnose, corner radius, lollipop cutters, step tools, and more in a single setup -- reducing cycle time and enhancing productivity and accuracy.
• Short setup time due to Arobotech support
• Arobotech pads can support a range of diameters: 3 to 10mm, 10 to 16.5mm, and 16.5 to 25mm, all in a single setup.
• Collet changes supported within the diameter range
• All these features are supported on the MX7 ULTRA, offering improved surface finish, stability, and accuracy.
• This application is versatile, working not only with sized blanks but also with bar stock loading.

Bar stock loading, commonly known as "blanket grinding," involves the automatic loading and grinding of multiple tools from a single blank. This process is ideal for batch production of endmills, drill heads, and similar tools. Its uniqueness lies in the ability to part off completed tools from the blank and then extend the blank from the collet to grind subsequent tools.

ANCA's LoaderMate software is designed to manage the number, location, and length of blanks in the pickup pallet, allowing for varying blank diameters per row. It also features a used bar report, detailing the number of tools ground and the total length of bar to be scrapped for each blank.
