6th Gen Moving Column MC Offers Non-Stop, All-In-One Machining

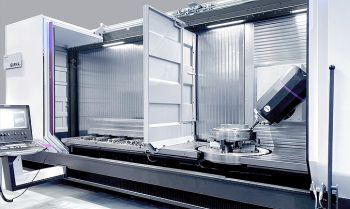

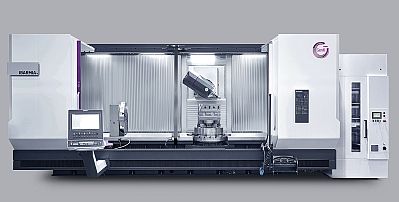

The ZVH 58/L4000 EXTREME Gen6 is an all-in-one machining solution, capable of handling a wide range of workpiece geometries. It features a 4-meter fixed table with high load capacity, an integrated rotary table, and a continuously rotating B-axis head, making it suitable for multi-axis machining.

The "Non Stop Machining" system allows for pendulum-cycle work, dividing the working area in two, further enhancing productivity by minimizing downtime between operations.

Additionally, the machine includes a compact polar tool magazine with a capacity for 134 tools, supporting tools up to 450 mm in length and weighing up to 20 kg. This setup ensures high tool autonomy, reducing the need for frequent tool changes during operations.

VIDEO: ZVH 58 Gen 6 Multitasking Machine

High-Performance Spindle for Demanding Applications

Equipped with a powerful HSK A-100 electrospindle, the ZVH 58/L4000 EXTREME Gen6 delivers up to 84 kW of power, 12,000 rpm, and 452 Nm of torque, making it ideal for machining high-strength materials like titanium, Inconel, and steel. This high-performance spindle ensures the machine can tackle even the most challenging tasks, from high-speed milling to precision drilling.

Benefits of the ZVH 58/L4000 EXTREME Gen6:

• 20% larger machining volume, increasing efficiency and handling of large parts.
• Faster tool changes, with a 10% improvement, enhancing overall productivity.
• 30% faster accelerations, shortening machining cycles and boosting throughput.
• 5-axis machining capability, with dynamic rotary tables reaching up to 25 rpm.



• Non Stop Machining system for continuous, uninterrupted operation in pendulum mode.
• Powerful 84 kW spindle with 12,000 rpm and 452 Nm of torque for high-demand applications.
• Tool magazine with a capacity for 134 tools, ensuring extended autonomous operations.

The Future of High-Performance Machining

With its enhanced efficiency, dynamic performance, and power, the ZVH 58/L4000 EXTREME Gen6 represents the pinnacle of multi-process machining solutions. This model condenses over 40 years of IBARMIA's expertise in designing and manufacturing moving column machining centers. It is an excellent solution for industries such as aerospace, energy, oil and gas, and rail, where precision, performance, and productivity are key.

Want more information? Click below.

Ibarmia
