Customized 3D Measuring Machines Offer All-in-One Quality Control

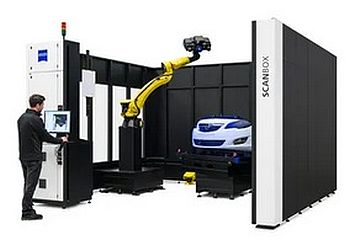

Performing fast, automated measurements with highest precision, the ZEISS ScanBox is an all-in-one solution for efficient quality control in production and manufacturing processes.

The standardized 3D measuring machines for different applications and parts sizes -- from locking hooks to complete car bodies -- offer an all-in-one solution: Programming, automated digitizing, inspection and reporting.

Thanks to an intuitive user interface and the virtual measuring room (VMR) as the central control and measurement planning software, the machines are easy to use.

VIDEO: ZEISS ScanBox 5: Modular Solution for Optical 3D Measurement

ZEISS ScanBox provides fully automated full-field deviations between the actual 3D coordinates and the CAD data in a short amount of time. Additionally, the powerful all-in-one software ZEISS INSPECT derives GD&T information, trimming and hole positions. ZEISS ScanBox inspects easily bolts, threads, standard geometries and more than 1000 measurement features.

Want more information? Click below.
