Optimize Your Machine Tool Performance with Laser-Accurate Alignment

Renishaw's XK10 alignment laser system has been developed to measure geometric and rotational errors of machine tools.

Used with the XK10 machine tool fixturing kit, it enables faster and easier measurements over traditional methods, such as dial gauges, autocollimators and metrology artefacts.

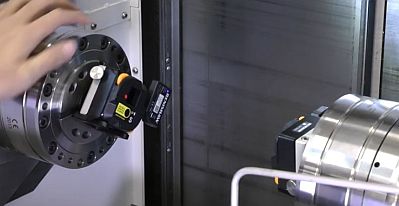

The XK10 can be used on linear rails to ensure that they are straight, square, flat, parallel and level, as well as to assess spindle direction and coaxiality of rotary machines.

Measuring geometric and rotational errors during machine build, maintenance and service, enables accurate alignment and adjustment of machine axes to achieve optimum performance. This reduces time during machine assembly processes and on-site service, including regular maintenance or following a collision.

System Overview
