Large Diameter Drilling Machine Offers 3-Axis Capability, 48 Inch Drilling Depth

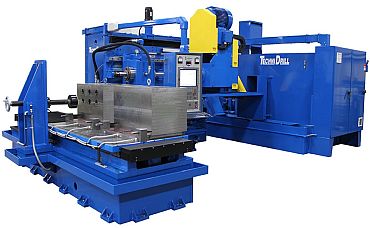

Kays Engineering's TechniDrill TBTA-3A-6 is a deep-hole drilling machine using the BTA process (Boring & Trepanning Association).

It can drill a 6-inch diameter hole from solid in a single pass and has 3-axis capability. The machine has applications in the aerospace, mold, and oil & gas industries.

The TBTA-3A-6 has 6 inches (152 mm) of BTA drilling capacity and 48 inches (1,219 mm) of drilling depth. The work table moves horizontally back and forth to provide the X-axis travel, and the drill slide moves vertically on a column to provide Y-axis travel.

The spindle motor is available with up to 75 HP. The high-pressure coolant system is rated at 200 gallons/minute of coolant flow and 1,500 psi of coolant pressure.

TechniDrill deep hole drilling machines are designed and manufactured by Kays Engineering in Marshall, Missouri, USA.

Want more information? Click below.

Kays Engineering
